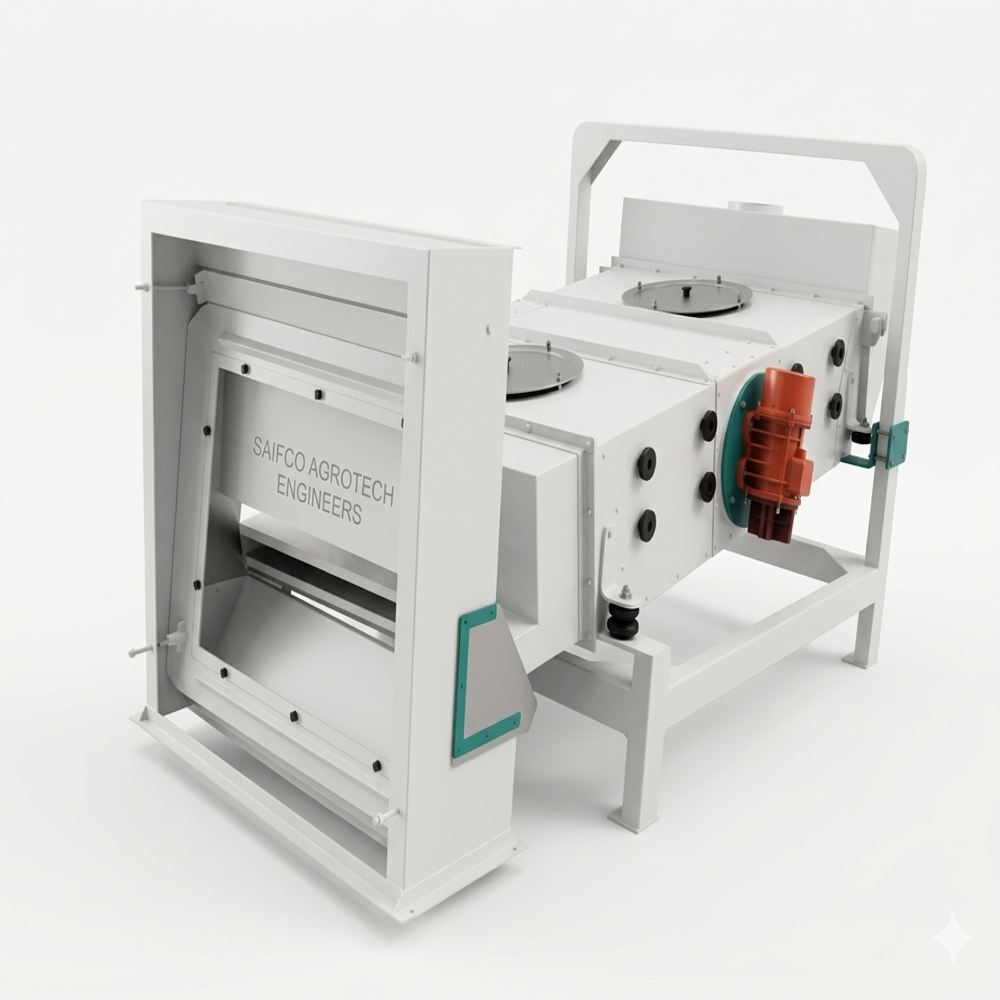

VIBRO SEPARATOR WITH ASPIRATOR SEPARATOR FOR ROLLER FLOUR MILL

Send Inquiry

Request To Call Back

VIBRO SEPARATOR WITH ASPIRATOR SEPARATOR FOR ROLLER FLOUR MILL

Name: VIBRO SEPARATOR WITH ASPIRATOR SEPARATOR
Brand: SAIFCO AGROTECH ENGINEERS
Price: 275000.0 INR
Availability: InStock

Price 275000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VIBRO SEPARATOR WITH ASPIRATOR SEPARATOR FOR ROLLER FLOUR MILL Specification

Product Type
Vibro Separator with Aspirator Separator

General Use
Grain and Seed Cleaning, Flour Mill, Agro Industries

Material
Mild Steel / Stainless Steel

Type
Grain Processing Equipment

Capacity
3 to 12 TPH (Tons Per Hour)

Weight (kg)
800-1200 kg (Depending on Model)

Computerized
No

Automatic
Yes

Control System
PLC or Manual

Cleaning System
Vibratory Sieve with Air Aspiration

Milling System
Pre-milling/Final Cleaning

Voltage
220V/380V/415V, 3 Phase, 50/60 Hz

Dimension (L*W*H)
2200mm x 1500mm x 1800mm (Approx.)

Raw Material
Wheat, Paddy, Pulses, Seeds, Maize, etc.

Feature
Efficient Separation, Easy Maintenance, Durable Structure, Low Power Consumption

Color
White/Grey with colored highlights

Decks
Single/Double/Triple Deck Options

Advantages
Reduces dust, ensures high purity, adjustable feed rate

Application
Pre-cleaning and grading of cereals, grains, and pulses

Service Support
Available on-site and online

Motor Power
2 to 5 HP

Drive
Vibro Motor Driven

Air Volume
600-1200 m3/h (Adjustable)

Sieve Cleaning Mechanism
Rubber Ball or Brush System

Screen Area
0.8 to 2.5 sq. m

Installation
Floor Mounted

Noise Level
<80 dB

VIBRO SEPARATOR WITH ASPIRATOR SEPARATOR FOR ROLLER FLOUR MILL Trade Information

Minimum Order Quantity
1 Number

Supply Ability
2 Per Week

Delivery Time
2 Week

About VIBRO SEPARATOR WITH ASPIRATOR SEPARATOR FOR ROLLER FLOUR MILL

Application:- For removal of Coarse and fine impurities such as sticks, gunny threads sand etc. Features:- Free swinging Sieve with unidirectional Screen motion, Supported on hollow rubber cylinders Drive by mean of vibrator located in the center of gravity of the machine Adjustable Stroke according seed and cleaning requirement. Adjustable Machine degree for big capacity.

Efficient Pre-Cleaning and Grading Solution

Engineered for agro industries, flour mills, and grain-processing facilities, the Vibro Separator with Aspirator Separator expertly removes dust and impurities, protecting downstream equipment and assuring quality output. The combination of vibratory sieving and adjustable air aspiration enables precise separation for wheat, pulses, maize, and more.

Flexible Design and Operation

Available in single, double, or triple deck configurations, this machine adapts to varying processing requirements, while the choice of manual or PLC controls accommodates different operator preferences. Its robust structure ensures longevity, and efficient feed rate adjustment enables tailored cleaning for every batch.

Ease of Maintenance and Support

A durable build, easy-access sieve cleaning by rubber ball or brush systems, and low power consumption make maintenance straightforward. Users benefit from comprehensive service support, both on-site and online, for troubleshooting and training, ensuring minimal downtime and maximum productivity.

FAQ's of VIBRO SEPARATOR WITH ASPIRATOR SEPARATOR:

Q: How does the Vibro Separator with Aspirator Separator enhance the quality of grains?

A: It employs vibratory sieving combined with an adjustable air aspiration system to effectively eliminate dust, chaff, and light impurities from cereals, pulses, and grains, resulting in high-purity output and improved end-product quality.

Q: What types of raw materials can be processed with this separator?

A: The machine is suitable for cleaning and grading a variety of raw materials such as wheat, paddy, pulses, seeds, maize, and similar grains used in flour mills and agro-industrial applications.

Q: When should this separator be used in the grain processing line?

A: It is ideal for pre-cleaning at the initial stage to remove foreign matter before storage or milling, as well as for final cleaning to ensure the purity required for packaging or further processing.

Q: Where can this equipment be installed for maximum efficiency?

A: Designed for floor-mounted installation, it is best placed in grain cleaning zones of flour mills, seed processing units, or agro-industrial plants to integrate directly with existing material handling and processing lines.

Q: What maintenance process is involved for reliable operation?

A: Routine tasks include inspecting and cleaning sieves using the built-in rubber ball or brush mechanism, checking motor and deck integrity, and ensuring the aspiration system is free from blockages; maintenance is simplified by the machine's accessible design.

Q: How does the adjustable air volume feature benefit users?

A: By allowing the operator to modify the air flow (600-1200 m3/h), the separator ensures optimal removal of different types and sizes of light impurities depending on grain characteristics, leading to higher cleaning precision.

Q: What support options are available for this equipment?

A: Comprehensive service support is provided both on-site and online, including technical assistance, troubleshooting, and user training to ensure seamless operation and prompt resolution of issues.
